Manganese Steel Crimped Wire Mesh
Manganese steel crimped wire mesh for mining, quarry and aggregate screening, including replacement vibrating screen panels. Specify the grade, clear opening, wire diameter and mounting details.
Industrial bulk and OEM supply. Send feed conditions, panel dimensions, quantity and hook drawings for quotation.
product details

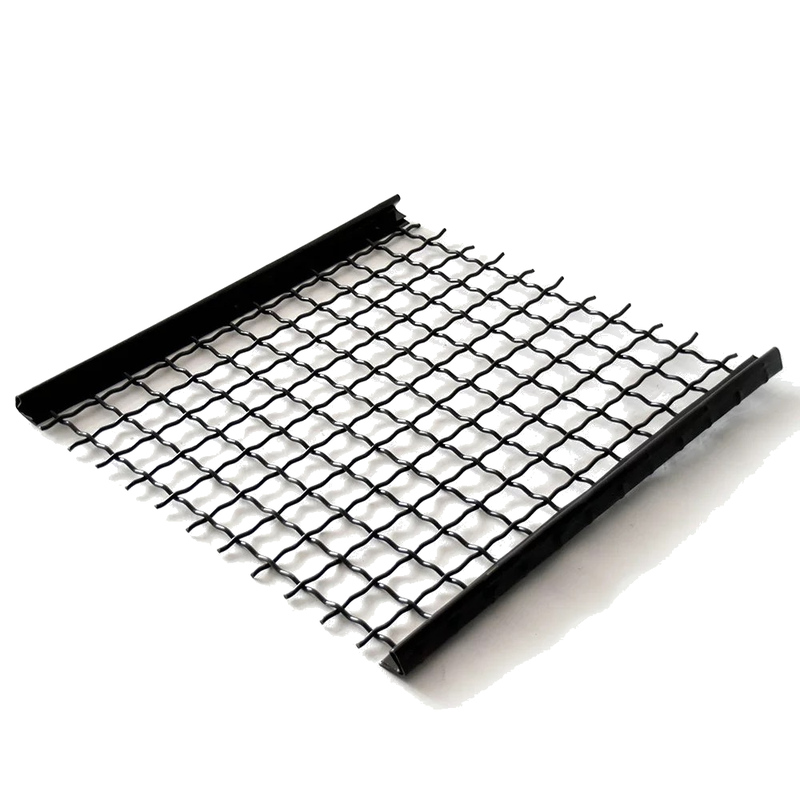

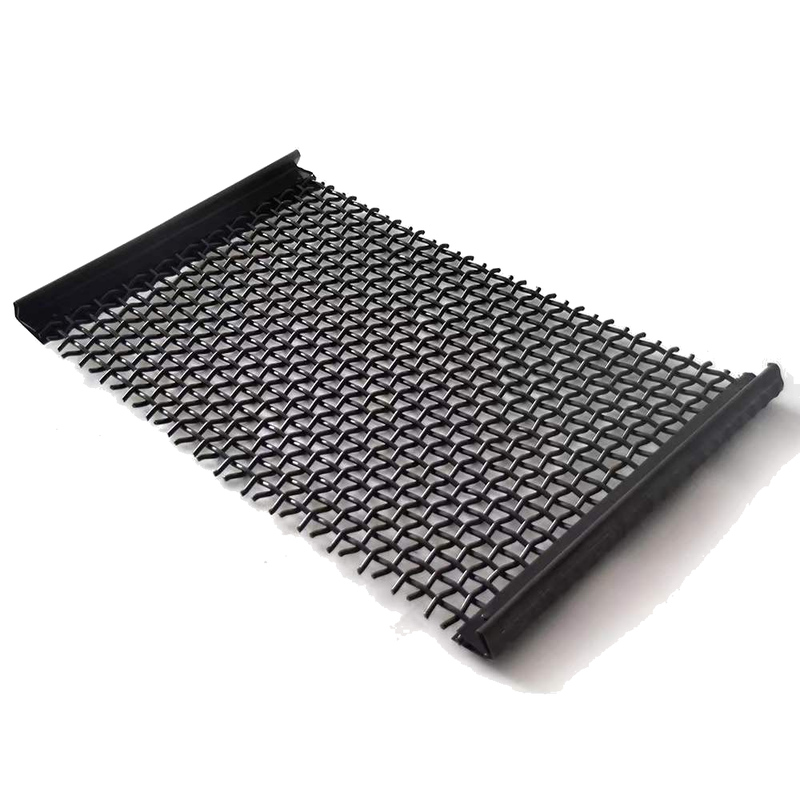

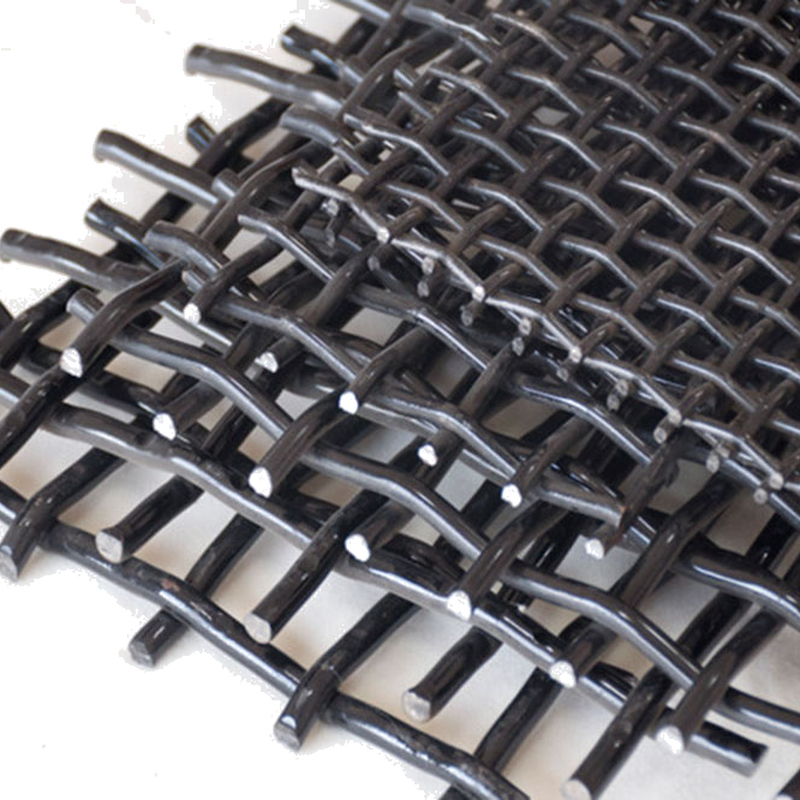

Manganese steel crimped wire mesh is a heavy-duty pre-crimped woven screen manufactured for abrasive and high-impact applications. The wires are formed before weaving so that every intersection is securely locked, helping the screen maintain uniform openings and dimensional stability during repeated vibration.
Anping County Dongce Wire Mesh Products Co., Ltd. manufactures manganese steel crimped mesh for mining, quarrying, aggregate grading, vibrating screens and other demanding material-separation equipment. Rolls, cut sheets, hooked screens and custom panels are available.
Specification Range for Review
| Specification | Metric | Inch |
|---|---|---|
| Wire Diameter | 0.45–12 mm | 0.0177–0.4724 in |
| Opening Size | 1–80 mm | 0.0394–3.1496 in |
The ranges above describe the existing product offering, not every possible combination. Material, aperture, wire diameter, tolerances and fabrication requirements must be reviewed together before an order is confirmed.
Material Selection for Mining Screens
Manganese steel screen mesh is selected for abrasive mining and aggregate duties. Specify the exact grade, required wire properties and applicable material standard. The commercial name alone does not identify the alloy, heat treatment or guaranteed wear life.
Service life depends on feed abrasiveness, impact, moisture, screen tension, support and operating conditions. Manganese steel does not provide the corrosion resistance of stainless steel.
Available Crimp Styles
| Crimp Style | Structure | Recommended Use |
|---|---|---|
| Double Crimp | Wires are crimped at each intersection | Accurate square openings and general screening |
| Lock Crimp | Deep crimps lock warp and weft wires | Large openings and high structural stability |
| Intermediate Crimp | Additional crimps between intersections | Large opening-to-wire diameter ratios |
| Flat Top Crimp | Smooth screening surface on one side | Improved material flow and reduced surface wear |
Specification Options
| Parameter | Available Options | Quotation Requirement |
|---|---|---|
| Opening Shape | Square or rectangular | Clear opening in mm or inch |
| Wire Diameter | 0.45–12 mm | Required diameter or duty level |
| Opening Size | 1–80 mm | Target particle or opening size |
| Supply Form | Roll, sheet, panel or hooked screen | Finished width × length and quantity |
| Edge Treatment | Trimmed, reinforced, bent or hooked | Drawing or installation dimensions |
How to Specify
Please provide both the clear opening and wire diameter. Approximate mesh count per inch = 25.4 ÷ (opening in mm + wire diameter in mm). For vibrating screens, also state the equipment model, feed size, material type, screen angle and required panel dimensions.
Key Advantages
- Stable openings under impact and vibration
- Strong woven construction with secure intersections
- High wear resistance for abrasive materials
- Square and rectangular openings available
- Custom crimp pattern, sheet size and edge treatment
- Replacement screens can be manufactured from drawings or samples
Typical Applications
- Mining and mineral processing
- Quarry and aggregate classification
- Stone, gravel and sand screening
- Coal and coke sizing
- Crusher and vibrating screen decks
- Recycling and bulk material separation
Quality Control
Wire diameter, opening size, crimp depth, sheet dimensions, edge preparation and overall flatness are inspected during production. Screen specifications are matched to the material, impact load and installation method to improve operating life.
Packaging
Sheets and panels are stacked with protective separators and secured on pallets or in wooden cases. Hooked edges and reinforced sections are protected against deformation during export transportation.
Industrial Bulk and OEM Orders
We supply industrial bulk orders, equipment manufacturers, distributors and project procurement teams. Household retail and individual small-quantity purchases are not offered.
Send your material specification, clear opening, wire diameter, finished dimensions, quantity and installation drawing to dongceshaiwang@163.com, or request an industrial screen quotation. Include the destination country and any required inspection or documentation.
Vibrating Screen Replacement Checklist
- Feed material, maximum feed size, target separation size and expected throughput.
- Wet or dry screening, moisture and any chemical exposure.
- Equipment model, deck position, screen angle and operating vibration details.
- Clear aperture, wire diameter and finished panel dimensions with tolerances.

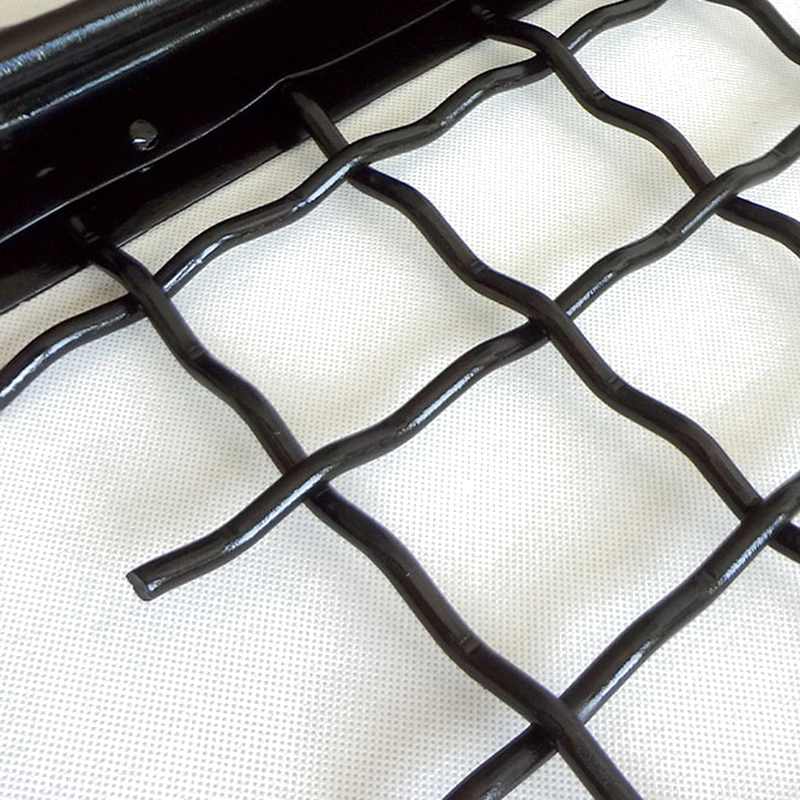

- Hook profile, tensioning direction, support-bar positions and a drawing or sample.
A nominal opening does not guarantee a separation cut size or throughput. Particle shape, bed depth and operating settings also affect screening performance.
Frequently Asked Questions
Can you make replacement mining screens?
Send an installation drawing or sample details so the mesh dimensions and edge arrangement can be reviewed before quotation.
Is manganese steel suitable for corrosive wet screening?
Review the water chemistry and corrosion exposure. Compare stainless steel crimped wire mesh where corrosion compatibility is a priority.
Compare materials in our crimped wire mesh category.
