Stainless Steel Crimped Wire Mesh
Stainless steel crimped wire mesh for chemical processing, food machinery, petroleum and aerospace-related equipment. SS 304, 304L, 316 and 316L options are selected against the service specification.
Industrial bulk and OEM orders. Send aperture, wire diameter, dimensions, quantity and drawings for review.
product details

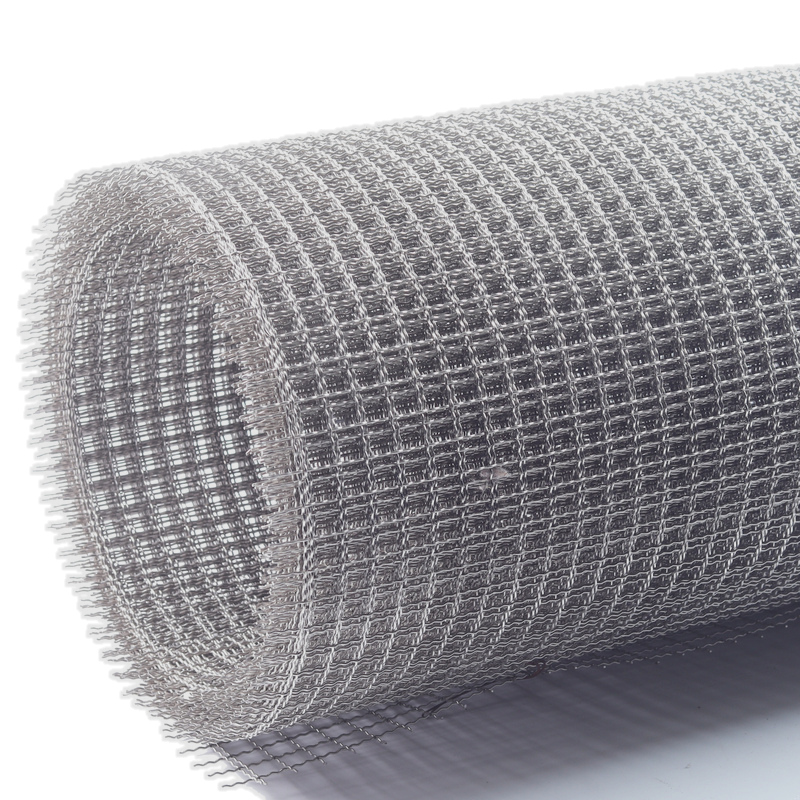

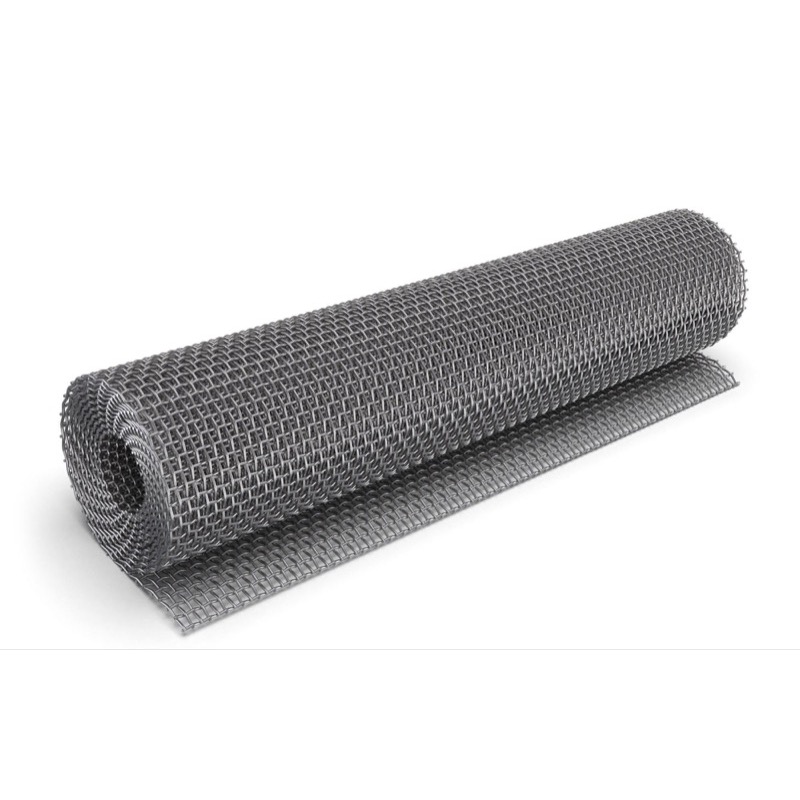

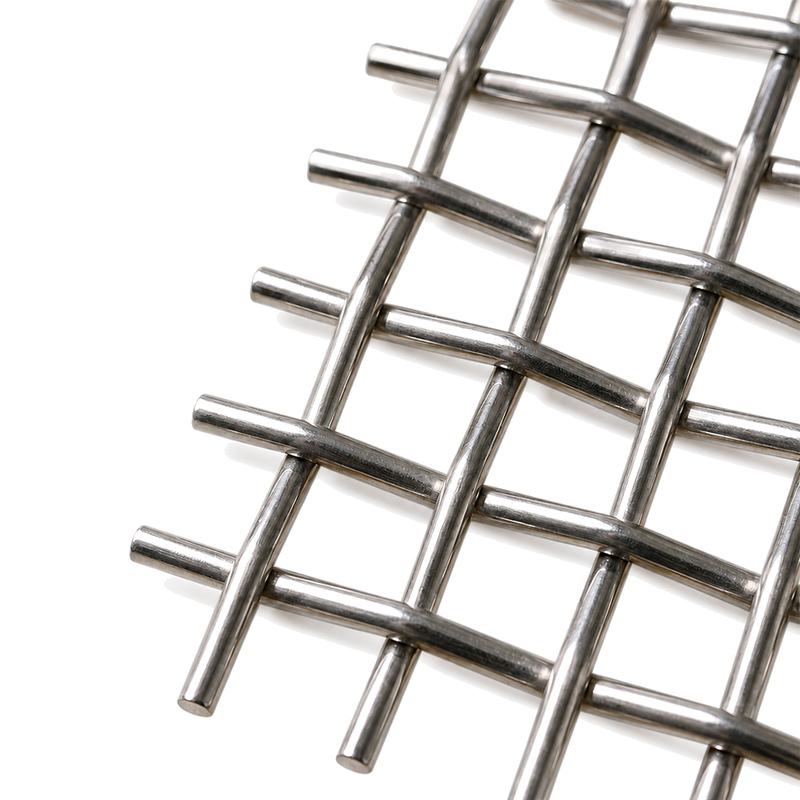

Stainless steel crimped wire mesh is woven from stainless steel wires that are accurately pre-crimped before weaving. The formed wires lock together at every intersection, producing uniform openings, high rigidity and excellent dimensional stability. It combines the strength of crimped woven mesh with the corrosion, heat and hygiene performance of stainless steel.
Anping County Dongce Wire Mesh Products Co., Ltd. supplies custom stainless steel crimped mesh in rolls, cut sheets, panels, framed screens and fabricated components for industrial screening, equipment protection and fabricated process components.
Specification Range for Review
| Specification | Metric | Inch |
|---|---|---|
| Wire Diameter | 0.45–12 mm | 0.0177–0.4724 in |
| Opening Size | 1–80 mm | 0.0394–3.1496 in |
The ranges above describe the existing product offering, not every possible combination. Material, aperture, wire diameter, tolerances and fabrication requirements must be reviewed together before an order is confirmed.
Other combinations may be manufactured according to the material, opening, strength and application requirements.
Material Grades
| Grade | Main Characteristics | Typical Use |
|---|---|---|
| SS 304 | Good corrosion resistance, strength and economical cost | General screening, food equipment, guards and decoration |
| SS 304L | Low-carbon 304 with improved weld-zone corrosion resistance | Welded frames and fabricated components |
| SS 316 | Improved resistance to chlorides and chemicals | Marine, chemical and demanding outdoor service |
| SS 316L | Low-carbon 316 for welding and corrosive environments | Chemical processing and precision fabrication |
Available Crimp Styles
- Double Crimp: warp and weft wires are crimped at each intersection for regular square or rectangular openings.
- Lock Crimp: pronounced crimps firmly lock the wires and improve stability.
- Intermediate Crimp: extra crimps between intersections strengthen large-opening mesh.
- Flat Top Crimp: provides a smoother working surface for material flow and reduced wear.
Specification and Supply Options
| Parameter | Available Options | How to Specify |
|---|---|---|
| Opening | Square or rectangular | Clear opening in mm or inch |
| Wire Diameter | Light to heavy wire, customized to the application | Diameter in mm or inch |
| Width and Length | Rolls, sheets and custom panels | Finished width × length |
| Surface | Natural stainless steel, cleaned or polished as required | State service and appearance requirements |
| Edge | Trimmed, bent, reinforced, framed or hooked | Provide drawing for fabricated screens |
How to Calculate Mesh Count
Crimped wire mesh is normally ordered by clear opening and wire diameter. Approximate mesh count per inch = 25.4 ÷ (opening in mm + wire diameter in mm). For accurate manufacturing, please provide both dimensions rather than mesh count alone.
Key Features
- Corrosion and temperature performance depend on the selected grade and operating conditions
- Stable openings and rigid woven construction
- Reusable, washable and easy to maintain
- Square and rectangular openings available
- Material and surface condition selected for the specified service and cleaning requirements
- Custom rolls, sheets, panels and fabricated parts
Industrial Applications
- Chemical processing: material screening and separation components, with the grade selected for the actual chemical exposure.
- Food machinery: screening panels, trays and support components, subject to cleaning, surface and food-contact requirements.
- Petroleum equipment: screening, straining support and protective components reviewed against temperature and process conditions.
- Aerospace-related equipment: custom mesh components made against an agreed engineering drawing and material specification; application suitability requires customer approval.
- Other industrial equipment: guards and screening panels where corrosion resistance is required.
Stainless steel grade alone does not establish food-contact compliance, aerospace approval, resistance to every chemical or a pressure rating. Confirm the required documentation and acceptance criteria before ordering.
Quality Control
Stainless steel grade, wire diameter, clear opening, crimp profile, panel dimensions and surface condition are checked during production. Fabricated panels can also be inspected against drawings and installation tolerances.
Packaging
Rolls are protected with moisture-resistant wrapping. Sheets and panels are secured on pallets or in wooden cases to protect edges and maintain flatness during export transportation.
Industrial Bulk and OEM Orders
We supply industrial bulk orders, equipment manufacturers, distributors and project procurement teams. Household retail and individual small-quantity purchases are not offered.
Send your material specification, clear opening, wire diameter, finished dimensions, quantity and installation drawing to dongceshaiwang@163.com, or request an industrial screen quotation. Include the destination country and any required inspection or documentation.
Specify Stainless Steel Screen Mesh
For a replacement screen, include the clear opening, wire diameter, finished width and length, and the edge or hook details. Share the material being screened and the equipment drawing so the proposed mesh can be checked against your installation requirements.
Send your screen mesh specifications or drawing
Related Mesh for Screening and Filtration
For finer square openings, compare plain weave stainless steel wire mesh. For liquid or gas filtration, explore stainless steel filter mesh. For welded intersections, see stainless steel welded wire mesh.
Frequently Asked Questions
Should I choose 304 or 316 stainless steel?
Provide the process medium, chloride exposure, temperature and cleaning chemicals. Grade selection must be assessed against those conditions rather than a universal recommendation.
Is crimped mesh a micron-rated filter?
Clear aperture is a geometric dimension, not a tested particle-retention rating. For fine filtration, specify the required performance and compare our stainless steel filter mesh.
Compare materials in our crimped wire mesh category.
